Product Overview
The new Mutoh XP1682WR 64-inch dye sub printer as part of its large format dye sub printer offering. As the successor to Mutoh’s popular, award-winning ValueJet 1638WX, the XpertJet 1682WR features improved usability and reduced operational workload which will ensure an excellent user experience and optimum quality output. As a result, the XPJ 1682WR dye sublimation printer is fit for both startup and established businesses wanting to extend their product portfolio.
The System Includes the Following:
- 64" Mutoh XpertJet 1682WR Dye Sub Printer
- Set of Mutoh DH-21 Dye Sub Ink
- Roll of SubliMate 64"x 328' Dye Sublimation Transfer Paper
- Wasatch RIP
DropMaster™ Technology
DropMaster™ is a revolutionary print automation technique that eliminates the need for cumbersome and time-consuming media-dependent printer adjustments. DropMaster automatically recalculates and adjusts the uni/bi-directional fire timings. It does this regardless of resolution and print speed.
Precise Worry-Free Media Selection Lever
Reduce the worry of media selection by adjusting the pressure on the media in 4 steps. In addition, thin paper or soft media can also be used.
New Media Flange for Quick and Super Easy Installation
Replace media paper rolls with ease. Offers users more convenience in replacing media.

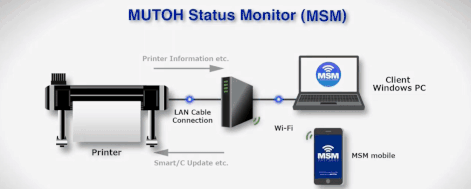

Mutoh Status Monitor (MSM)
Mutoh continues to provide value beyond the box with its updated MUTOH Status Monitor (MSM) system. MSM is lightweight software exclusive to Mutoh. Use MSM to monitor your ink system, heaters, and even check for the latest firmware. The MSM makes your workflow easy by sending you email notifications to alert you with several pre-programmed messages including printer status, ink status, media status, and more.
Download the MSM mobile app to bring all these features with you remotely.

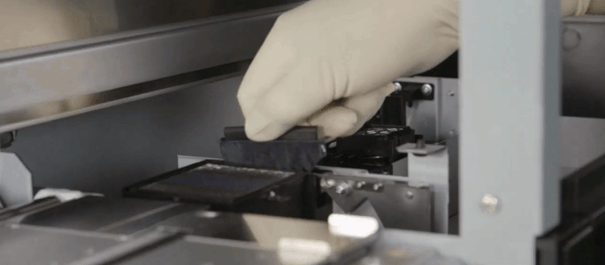

User-Friendly Wiper Replacement and Maintenance
The Mutoh XPJ1682WR has improved efficiency with dedicated wipers that can be easily replaced by users.
Target Markets
Targeted at the sublimation transfer market, the Mutoh XpertJet 1682WR printer delivers high quality graphics for transfer onto all possible types of polyester coated or polyester-based rigids, gadgets and flexible materials. Applications encompass in-store textile displays, personalized interior décor, custom apparel, soft signage, sportswear, customized promotional products, giftware and more.
KEY FEATURES
- 64-inch Eight (8) Channel High Speed Dye Sublimation Printer
- Staggered Dual DX7 Printheads for Outstanding Images
- Includes Set of Mutoh DH-21 Dye Sub Ink (Ink Bags)
- Includes Roll of 64" x 328' SubliMate Sublimation Transfer Paper
- Includes Flexi Dye Sub RIP Software--90 Day Trial
- Advanced Media Handling System for High Quality
- Supports All Types of Dye Sub Papers from Thin to Thick
- Ultra-Fast Printing--Up to 1,012 SqFt/Hr
- High Resolution and High Definition Printing--Up to 1440 DPI
- Incorporates Variable Drop On-Demand Piezo Drive Method
- Intelligent Interweave (i2) Technology Eliminates Banding
- Multi-Language OLED Display
- Smart Communication through Mutoh Status Monitor (MSM)
- Automatic Sheet Off Function
- Optional Take-Up System
- Complete Dye Sub Configurations Including Ink, Paper, RIP, Heat Presses, Calendar and Accessories
- Limited One Year Warranty*
Specification
- Width: Maximum 63.98"
- Max Print Length: 4921 ft
- Max Thickness: 0.01 in (the Head Height is Set to Low) 0.05 in (the Head Height is Set to Mid) 0.11 in (the Head Height is Set to High)
- Roll Capacity: 5.9" Diameter | 2 inches or 3 inches | 66.14 lbs. or Less
- Print Method: On-Demand Piezo Drive System
- Head Height: Three-Level Adjustment of Low .06", Mid, .09", and High .16"
- Number of Printheads: Staggered Dual (2)
- Type: Mutoh DH-21 Dye Sublimation Ink
- Ink Set: 4 Colors (CMYK) | 8 Colors (CMYK x2)
- Capacity: Low: 1000 ml | 2200 ml Ink Bags
- Print Resolution: Max 1440 Dpi
- Interface: Gb-Ethernet (1000BASE-T)
- Power Requirements: AC 100-120V± 10%/ AC 200V~240V± 10% | Frequency 50/60Hz ± 1Hz
- Operation: AC100V~120V | AC200V~240V, 180W or Below
- Sleep Mode: AC100V~120V | AC200V~240V, 30W or Below
- Temperature: 68-89.6°F | Humidity: 40-60%RH (Non Condensing)
- Temperature: 71.6-86°F | Humidity: 40-60%RH (Non Condensing)
- 109" x 35" x 56" (Cover Closed)
- 109" x 35" x 63" (with Ink Bag Cases)
- Main Body: 315 lbs. | Stand: 71 lbs
- Included (Flexi Dye Sub--90 Day Trial)
- One Year Limited Warranty*
