Product Overview

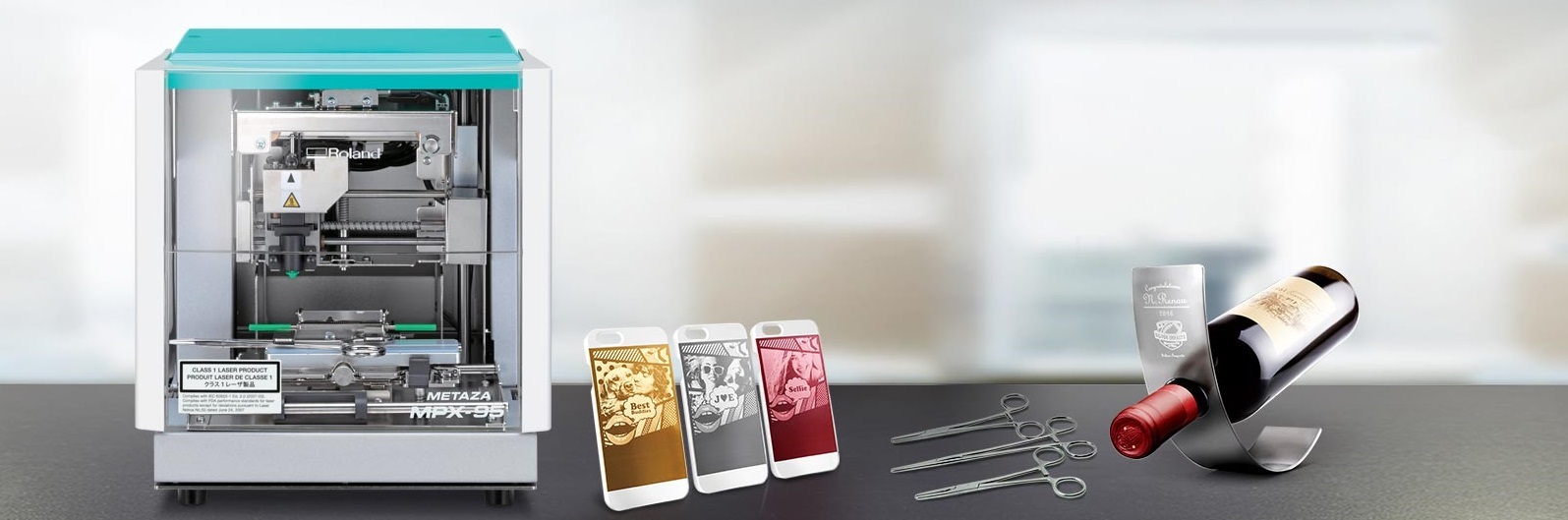

Roland MPX-95 Photo Impact Printer and Engraving Machine
Perfect for kiosk, jewelry stores, and gift shop applications, the new METAZA MPX-95 photo impact printer is a low-cost, easy-to-operate solution for personalizing high-value metal items and making them even more unique and profitable. With a host of options, the Roland METAZA MPX-95 can be customized to meet the demands of a wide array of impact printing applications on materials like gold, silver, platinum, stainless steel, titanium, and acrylic. Everything from gift and jewelry personalization, award customization to commercial Direct Parts Making (DPM) and advanced medical Unique Device Identification (UDI) marking can all be achieved with this single platform.
Personalize and Mark Hundreds of Metal Items
A Diamond-tipped stylus strikes material with high-speed precision, adding fine text and complex data patterns and producing detailed graphics and text on smart devices, jewelry, sunglasses, urns, golf clubs, tools, industrial equipment and more.
NEW Laser Pointer Alignment
The Roland MPX-95 comes standard with a built-in laser pointer to take the guesswork out of positioning your work piece. With a touch of a button, users can easily identify where the center of their image will be printed on almost any material, ensuring optimum precision and alignment.
NEW Versatile Removable Table and Base Plate

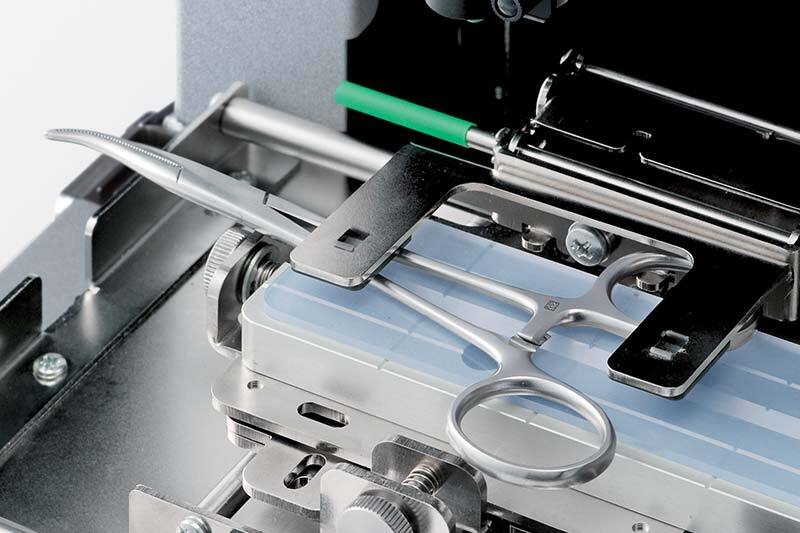

Users can expand the Roland MPX-95's profit-making potential in seconds. The base of the device can be removed easily, enabling the Roland MPX-95 to imprint onto large items such as golf clubs, metal vases, medical tools, devices and industrial equipment.
METAZA Studio and Dr. Engrave Software Included
The Roland METAZA MPX-95 comes with powerful, user-friendly METAZA Studio, design software, making it simple to achieve great results. METAZA studio accepts artwork, designs and photos from a wide variety of sources, including digital cameras, mobile phones, and bmp, jpeg or Adobe Illustrator files. With the Roland METAZA MPX-95 Dr. Engrave software, you can choose from a selection of TrueType fonts, or create your own single-stroke or fill fonts. Dr. Engrave supports production of variable data projects.
| Model | MPX-95 | |
|---|---|---|
| Imprintable material | Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, titanium, etc. (Vickers hardness [HV] of the imprint surface must be 200 or less.) |
|
| Loadable material size | Using a base table + base plate: | Max. 3.9 in (W). X 7.9 in. (L) X 1.6 in. (H) (100 mm (W) X 200 mm (L) X 40 mm (H)) or 7.9 in. (W) X 3.9 in. (L) X 1.6 in. (H) (200 mm (W) X 100 mm (L) X 40 mm (H)) |
| Using a base plate only: | Max. 3.9 in. (W) X 7.9 in. (L) X 2.8 in. (H) (100 mm (W) X 200 mm (L) X 70 mm (H)) or 7.9 in. X 3.9 in. X 2.8 in. (200 mm (W) X 100 mm (L) X 70 mm (H)) *The above are for when the cover is closed. When the cover is open, there is no limit on how large the material can be, but the imprint area of the material must be placed within the imprint area. |
|
| Imprint area | Maximum imprintable area | 3.2 in. (W) X 3.2 in. (D) X 2.8 in. (H) 80 mm (W) X 80 mm (D) X 70 mm (H) |
| Recommended imprint area | 2.0 in. (W) X 2.0 in. (D) X 2.8 in (H) 50 mm (W) . 50 mm (D) . 70 mm (H) |
|
| Resolution | High resolution | 529 dpi |
| Photo | 353 dpi | |
| Text | 265 dpi | |
| Vector | 1058 dpi | |
| Imprint direction | Unidirectional imprinting or bidirectional imprinting (Selectable with Windows driver) | |
| Imprint speed (Default) | Photo | 2.0 in./sec (50 mm/sec) |
| High resolution/Text | 1.2 in./sec (33 mm/sec) | |
| Vector | 0.94 in./sec (24 mm/sec) | |
| Interface | USB | |
| Power requirements | Dedicated AC adapter | AC 100 to 240 V ±10%, 50/60 Hz |
| Main unit | DC 19 V, 1.2 A | |
| Power consumption | Approx. 21 W | |
| Operating noise | 70 dB (A) or less | |
| Operating temperature | 50 to 86°F (10 to 30°C) | |
| Operating humidity | 35 to 80% (no condensation) | |
| External dimensions | 11.3 in. (W) x 15.1 in. (D) x 12.2 in. (H) 286 mm (W) x 383 mm (D) x 308 mm (H) |
|
