Product Overview

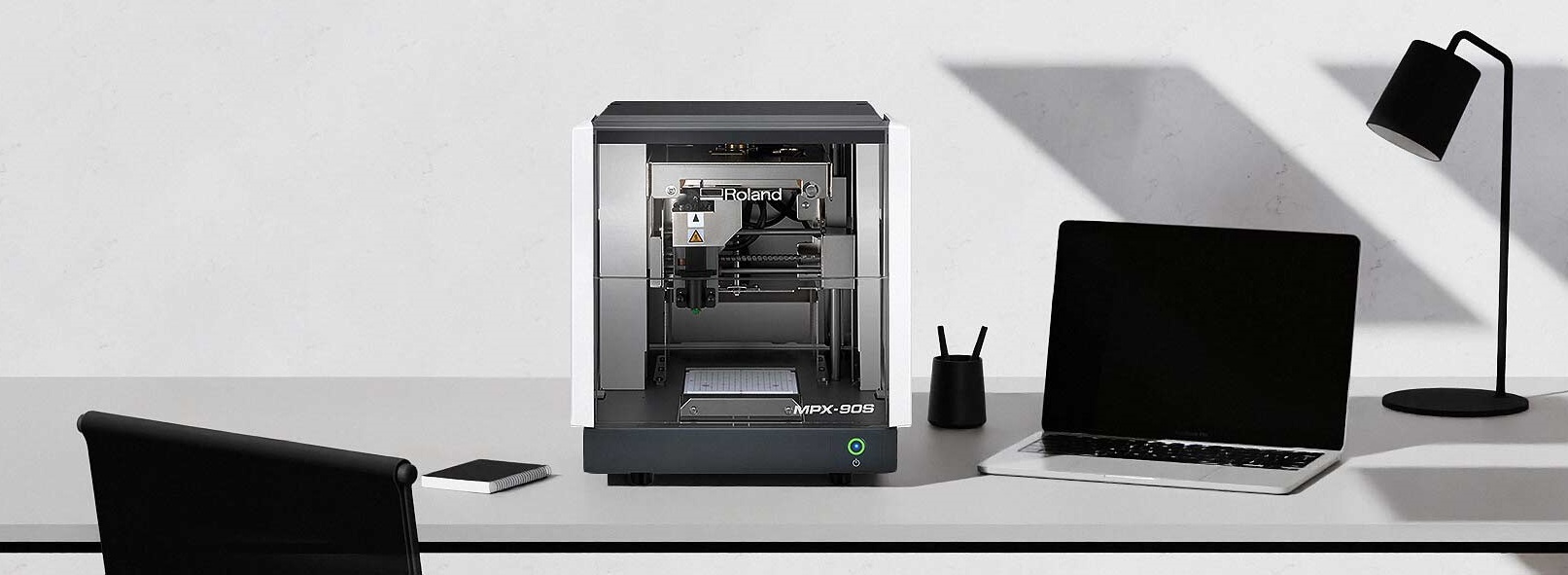

Perfect for gift personalisation, the METAZA MPX-90S metal engraving machine is a cost-effective, user-friendly way to mark gold, steel, silver, titanium, brass and aluminium.
MPX-90M Direct Part Marking Device
- Designed for direct marking of GS1 DataMatrix barcodes for UDI compliance as directed by the U.S. Food & Drug Administration (FDA)
- Diamond-tipped stylus permanently marks hard materials up to 200 HV, including surgical steel, titanium and aluminum, as well as matte plastics and acrylics
- Bundled MetazaStudio software allows for quick setup of DataMatrix barcodes and QR codes, as well as text, symbols, photos and graphics
- Medically safe marking will not corrode or degrade materials over time
With the MPX-90M UDI barcodes impact printer, marking surgical instruments and tools with unique device identification (UDI) is more precise and affordable than ever. The MPX-90M quickly and accurately imprints large amounts of data in barcode format as small as 1mm2 on materials ranging from surgical steel and titanium to aluminum and acrylic. It does this in the most clean and user-friendly way possible, without debris, odor or fuss.
MPX-90M Highlights
- Mark GS1 DataMatrix barcodes for UDI compliance as directed by the U.S. Food & Drug Administration (FDA)
- Diamond-tipped stylus marks hard materials up to 200 HV
- Clean, precise workflow with no debris or odors
- Automatic surface detection for error-free imprinting
- Bundled METAZAStudio software for easy setup and operation
- Built-in laser pointer and adjustable XY vise
- Automated head height function ensures proper image placement
- Two nose cones facilitate marking on flat and curved surfaces
- Adjustable XY axis clamping table for holding flat and odd shaped tooling
- Variable data printing allows automatic imprinting of unique serial numbers, production lot dates and other sequential data
Clean, High-Speed Marking on Hard Metal Surfaces
The MPX-90M uses a durable diamond-tipped stylus to directly imprint on titanium, stainless steel and other hard metals. Engineered for speed and precision, the MPX-90M can quickly imprint up to 26 digits of information inside an area as small as one square millimeter. Because it does not burn or remove material on impact, the MPX-90M generates no odors or debris. No daily maintenance or special power or ventilation is required.
METAZAStudio Software Included
Specification
| MODEL | MPX-90M |
|---|---|
| Printable Material | Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, acrylic, etc. Vickers hardness (HV) of the printable surface must be 200 or less. |
| Loadable material size with cover closed |
3.94(W) x 7.87(L) x .80(Thick) in. - 100(W) x 200(L) x 20(Thick) mm or 7.87(W) x 3.94(L) x .80(Thick) in. - 200(W) x 100(L) x 20(Thick) mm |
| Printable area | 3.15 x 3.15 in. (80 x 80 mm) |
| Resolution | 265 dpi (Text) 353 dpi (Photo) 529 dpi (High Resolution) 1058 dpi (Vector) |
| Print speeds | 1.29 in./sec (33 mm/sec) – Text/High Resolution Mode 1.97 in./sec (50 mm/sec) – Photo Mode 0.94 in./sec (24 mm/sec) – Vector Mode |
| Interface | USB Interface (Compliant with Universal Serial Bus Specification Revision 1.1) |
| Power Supply | Dedicated AC Adapter: AC 100V to 240V +/- 10%, 50-60Hz |
| Machine: DC 19V, 1.6A | |
| Power Consumption | Approximately 24W |
| Acoustic Noise Level | Under 70dB (A) |
| Operation Temperature | 50 to 86°F (10 to 30°C) |
| Operation Humidity | 35 to 80% (No condensation) |
| External Dimensions | 11.3(W) x 15.1(D) x 12.2(H) in. - 286(W) x 383(D) x 308(H) mm |
| Weight | 24 lbs (11 kg) |
| Included accessories | AC adapter, power cord, test print material, USB cable, MetazaStudioSoftware CD-ROM, vise and user’s manual |
| COMPUTER SPECIFICATIONS | |
| Operating system (OS) | Windows XP/Vista/7 (32 and 64 bit editions) |
| CPU | Pentium 4, 3.0GHz or more recommended |
| Memory | 512MB or more recommended |
| Required hard disk space | 20 MB for software application (more recommended for storing templates and libraries) |
| Compatible file formats | MetazaStudio: JPG, BMP, AI, EPS (Adobe Illustrator 8.0 export, CorelDRAW) |
